Name: 25kA Type 1 Surge Protector 275V 1.3kV T1 10/350us 2P Single Phase
Brand: BRITEC
SKU: BR-25M 2P
Price: 1 USD
Availability: InStock
Rating: 5 (166 reviews)

منزل المنتجات اكتب 1 جهاز حماية الطفرة

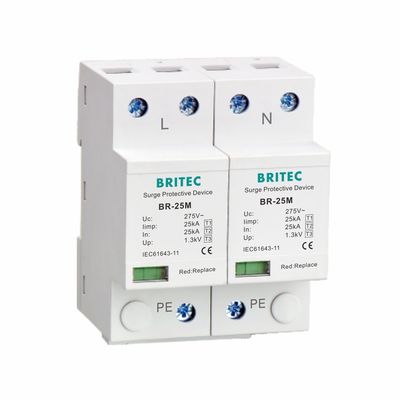

25kA Type 1 Surge Protector 275V 1.3kV T1 10/350us 2P Single Phase

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	BRITEC
رقم الموديل:	BR-25M 2P

شروط الدفع والشحن:

الحد الأدنى لكمية:	100 قطعة / قطعة
تفاصيل التغليف:	تعبئة التصدير
وقت التسليم:	يتم شحنها في غضون 15 يوما بعد الدفع
شروط الدفع:	L / C ، D / A ، T / T ، ويسترن يونيون
القدرة على العرض:	50000 قطعة / قطع شهر

اتصل

مفصلة وصف المنتج

الصانع:	Wenzhou Britec Electric Co.، Ltd.	جزء اسم:	نوع 1 تصاعد حامي
مكان المنشأ:	تشجيانغ ، الصين (البر الرئيسي)	اسم العلامة التجارية:	BRITEC
معايير السلامة:	IEC61643-1	جامعة كاليفورنيا:	275 فولت
IIMP:	25 كيلو	للتركيب على:	35 ملم Din السكك الحديدية
رقم القطب:	2P	طلب:	على مرحلة واحدة
تسليط الضوء:	Type 1 Surge Protection Device 275V,Single Phase Type1 Surge Protector,25kA T1 Type 1 Surge Protector , Single Phase Type1 Surge Protector , 25kA T1 Type 1 Surge Protector

25kA Type 1 Surge Protector Features:

• Model: BR-25M 2P

• Protection class: Type 1, Class I.

• Maximum continuous operating voltage Uc: 275VAC

• Green/Red window color showing working status, green=normal, red=abnormal.

25kA Type 1 Surge Protector Technology characteristic:

	BR-25M 2P
Max. continuous operating a.c. voltage Uc	275V
Voltage protection level Up	≤1.3kV
Lightning impulse current (10/350us) Iimp	25kA
Nominal discharge current (8/20us) In	25kA
Maximum discharge current (8/20us) Imax	100kA
Response time tA	≤25ns
Test standard	IEC61643-1
Operating temperature range Tu	-40℃—80℃
Relative humudity(25°C)	≤95%
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0

Dimension:

25kA Type 1 Surge Protector 275V 1.3kV T1 10/350us 2P Single Phase 0

25kA Type 1 Surge Protector Application:

• It is mainly used for the first level lightning surge overvoltage protection of AC distribution system.

• Used to guard sensitive equipment from voltage spike.

• Used to protect electrical and electronic equipment from lightning electromagnetic pulse induced voltages, operating transients, and overvoltages.

Our Services:

• Reply inquiry within 24 hours.

• Answer your detailed question.

• Freight forwarder: faster, safer, and convenient.

• Please kindly inform us which item you are interested in so that the reasonable price could be provided soon.

Company Information:

Britec is a factory, specializing in SPDs, located in Yueqing, Zhejiang, China. With advanced technology, our products have been authorized by TUV Rhineland, and CE successfully. We adheres to self R&D, strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, insist on being professional,large-scale brand.

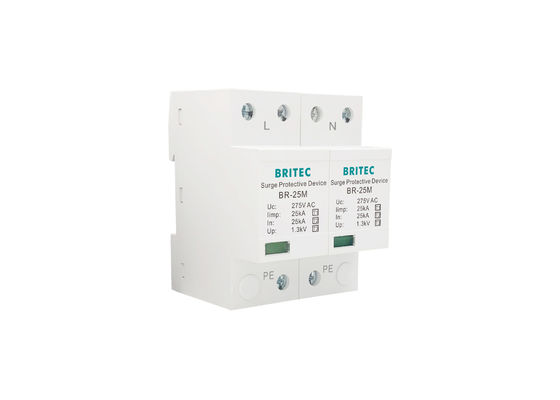

25kA Type 1 Surge Protector 275V 1.3kV T1 10/350us 2P Single Phase 1

Certification:

Product process:

Shipping:

FAQ:

Q1: How long is the delivery time?
A: Normally 20 working days after received deposit, we have our own factory, the delivery time can be adjust flexible.

Q2: What is the warranty for the surge protection?
A: Two years.

Q3: What is the payment terms?
A: T/T, Paypal, etc.

Q4: How about the products quality?
A: Our products have got CE, CB, TUV certificates.

Q5: Is it OK to print my logo on lightning arrester?

A: Yes. Please inform us formally before our production.
