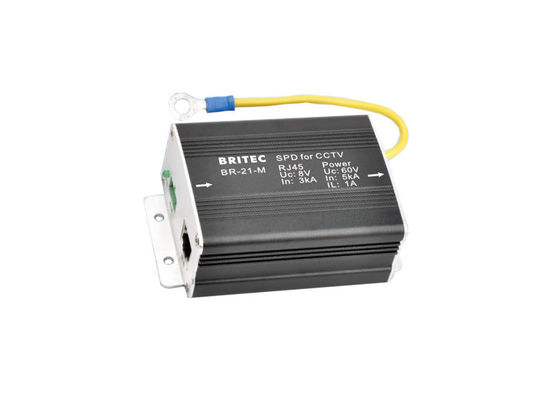

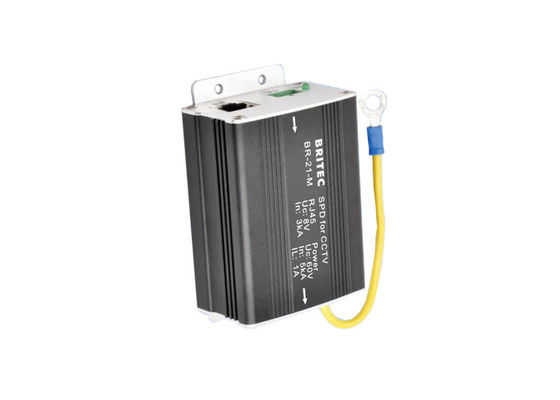

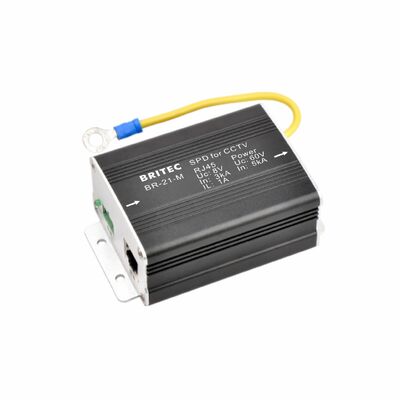

Name: 10kA CCTV بيانات SPD عرام حامية مراقبة فيديو Surge Arrester RJ45 محطة كتلة
Brand: BRITEC
SKU: BR-CCTV-21M
Price: 1 USD
Availability: InStock
Rating: 4.7 (168 reviews)

منزل المنتجات أجهزة حماية الطفرة في الإيثرنت

10kA CCTV بيانات SPD عرام حامية مراقبة فيديو Surge Arrester RJ45 محطة كتلة

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	BRITEC
إصدار الشهادات:	CE
رقم الموديل:	BR-CCTV-21M

شروط الدفع والشحن:

الحد الأدنى لكمية:	200 قطعة / قطعة
تفاصيل التغليف:	تصدير التعبئة
وقت التسليم:	15-30 يوم بعد دفع
شروط الدفع:	T/T
القدرة على العرض:	50000 قطعة لكلّ شهر

اتصل

مفصلة وصف المنتج

:		إيل:	0.5A
في:	5kA	مواد:	ألومنيوم سبيكة
TA:		صلة:
عرض النطاق الترددي:	30 ميجابت في الثانية	إدخال خسار:
:	10kA	تو:	-40 ℃ ... + 80 ℃
تسليط الضوء:	حماية spd عرام , أجهزة حماية الطفرة التجارية

10kA CCTV Data SPD Surge Protector Video Monitoring Surge Arrester RJ45 Terminal Block

Feature:

• Low voltage surge protective device.
• Operating temperature:-40℃~+80℃.
• Designed according to IEC 61643-21 standards.

Product Details:

	CCTV-21M-48	CCTV-21M-230
Test standards	IEC 61643-21	IEC 61643-21
Max. continuous operating d.c. voltage _(RJ45)Uc	6V	6V
Max. continuous operating a.c. voltage _(RJ45)Uc	4V	4V
Max. continuous operating a.c. voltage _(power)Uc	60V	275V
Nominal current IL	0.5A	0.5A
C2 Nominal discharge current (8/20us) In	5kA	5kA
C2 Max. discharge current(8/20μs) Imax	10kA	10kA
Voltage protection level [line-line/shield] _(RJ45)Up	≤30V	≤30V
Voltage protection level [line/shield-PG] _(RJ45)Up	≤500V	≤500V
Voltage protection level _(power)Up	≤200V	≤1.2kV
Response time [line-line/shield] tA	≤1ns	≤1ns
Response time [line/shield-PG] tA	≤100ns	≤100ns
Operating temperature range Tu	-40℃…+80℃	-40℃…+80℃
Connection input/output RJ45/Power	RJ45/Terminal block	RJ45/Terminal block
Bandwidth	30Mbps	30Mbps
Insertion loss	≤0.3dB	≤0.3dB
Enclosure material	aluminium alloy	aluminium alloy
Degree of protection	IP20	IP20
Order Code	D9050	D9051

Technology characteristic:

10kA CCTV بيانات SPD عرام حامية مراقبة فيديو Surge Arrester RJ45 محطة كتلة 0

Application:

• Designed to protect monitor equipments (Power, Ethernet), widely applied in bank monitor & safe
guard system.
• Suitable to video monitoring systems for protection from surge, over voltage and electrostatic
induced from lightning stroke.
• Monitor equipment for school, enterprise, road etc. security and protection. CCTV camera,dome camera.
• Suitable for lightning protection of power and video transmission.

Advantage:

• Easy installation and maintenance free.
• Low insertion loss.
• Quick response.
• Multiple stage protection configuration with high current discharge ability and low protection voltage.
• High quality components ensure the fast response and reliable performance.
• Interface of the surge protective device match to the equipment interface for easy connection.
• Protection circuits for over current and overheating ensures reliability, safety and flame-retardant property.

Our Services:

• Professional manufacturer, 17 years global leading profession manufacture of electrical products
surge arrester.
• Prompt response: Any inquiries will be replied within 24 hours.
• OEM/ODM available.
• Standard packaging, and you can also tell us your own requirements on packaging.
• All products in accordance with the IEC the international standard.
• Faster delivery.
• Individually Tested Prior to Shipment.

What is IEC 61643-21 standards?

• IEC 61643-21: Low-voltage surge protective devices; Part 21: Surge protective devices
connected to telecommunications and signalling networks; Performance requirements and
testing methods.
• The test categories for surge protective devices connected to telecommunications and signalling
networks are defined in these standards.
